Spears® 829-030

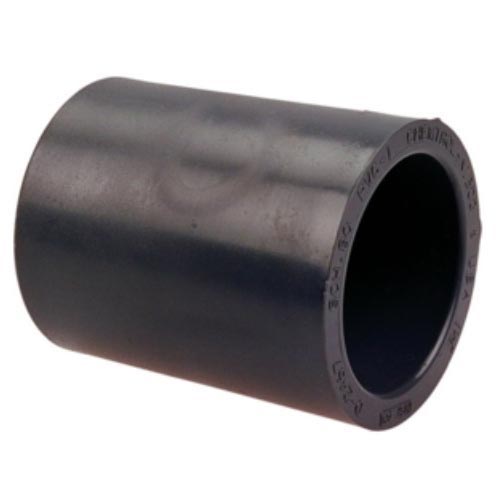

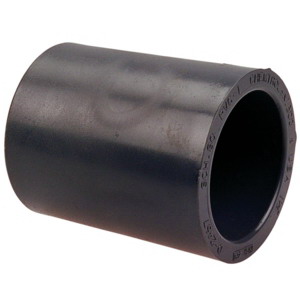

Spears® 829 Molded Pipe Coupling, 3 Inch, Socket, 150 psi, PVC, 3-31/32 Inch L, 0.3 Inch T, SCH 80, Gray

  • Manufacturers: Spears Manufacturing
  • Brand Name: Spears®
  • CPEPN: 3PVC80COU
  • MPN: 829-030
  • UPC: 054211160886
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Check Branch and Showroom availability

Spears® 829 Pipe Coupling, Molded, 3 Inch, Socket, 3-31/32 Inch Length, 0.3 Inch Wall Thickness, SCH 80, 150 psi Working, ASTM D1785/D2467 PVC, Gray, 140 deg F, 4-5/32 Inch OD

Color      :      Gray
Dimensions      :      4-5/32 Inch OD
End Style      :      Socket
Length      :      3-31/32 Inch
Material Specification      :      ASTM D1785/D2467
Material      :      PVC
Nominal Size      :      3 Inch
Schedule Rating      :      SCH 80
Series      :      829
Temperature Rating      :      140 deg F
Type      :      Molded
Wall Thickness      :      0.3 Inch
Warranty      :      Lifetime Limited
Working Pressure      :      150 psi

Spears® schedule 80 PVC product designs combine years of proven experience with computer generated stress analysis to yield the optimum physical structure and performance for each fitting material reinforcement is uniformly placed in stress concentration areas for substantially improved pressure handling capability. Resulting products are subjected to numerous verifi cation tests to assure obtaining the very best PVC fittings available.

  • Exceptional chemical and corrosion resistance
  • High temperature ratings
  • Lower installation costs
  • Higher flow capacity
  • Advanced design specialty fittings

Standard/Approvals: NSF Approved

Application: Portable Water Systems
