Southwire® 27039701
Send Print
  1. pin-int

Southwire® 27039701

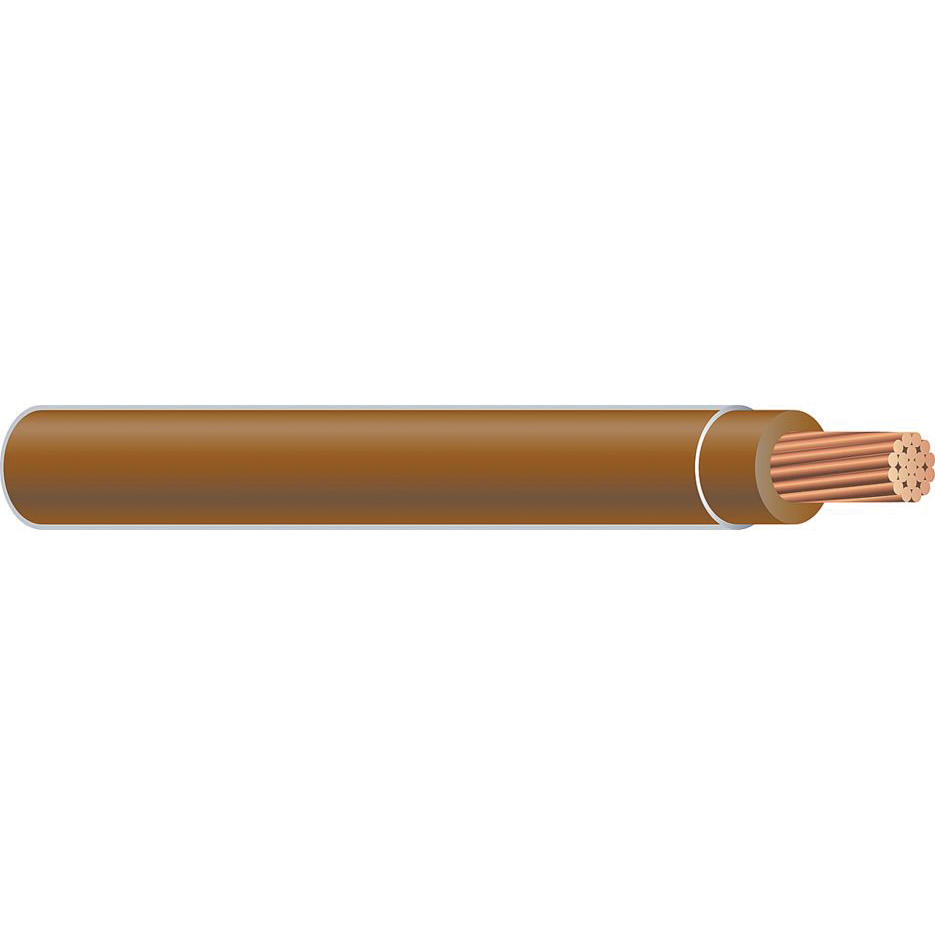

Southwire® 27039701 TFFN Building Cable, 16 AWG Annealed Copper Conductor, 500 ft Spool L, 600 V, 26 Strands

  • Manufacturers: Southwire Company
  • Brand Name: Southwire®
  • CPEPN: 16TFFNSTRBRO
  • MPN: 27039701
  • UPC: 032886227509
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Total Availability: loading
    • This item does not qualify for free shipping

Southwire® 270 Building Cable, TFFN, 16 AWG Conductor, Annealed Copper Conductor, 500 ft Spool Length, 26 Strands, 99 mil Outside Dia, 8 A, 600 V, PVC Insulation, Nylon Jacket, Brown Jacket, 90 deg C

Amperage Rating      :      8 A
Conductor Size      :      16 AWG
Conductor Type      :      Annealed Copper
Insulation Material      :      PVC
Jacket Color      :      Brown
Jacket Material      :      Nylon
Length      :      500 ft Spool
Outside Diameter      :      99 mil
Series      :      270
Strands      :      26
Temperature Rating      :      90 deg C
Type      :      TFFN
Voltage Rating      :      600 V
  • Heat, moisture, gasoline and oil resistant
  • 15 mil insulation thickness
  • 4 Inch jacket thickness
  • Used as fixture wire, machine tool wiring or appliance wiring

Standard/Approvals: ASTM, CSA Certified, NFPA 70, RoHS/REACH Compliant, UL 66/758/1063

  • pdfSpecification Sheet https://4500cpe.stage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Southwire_27032201_Specification_Sheet.pdf
