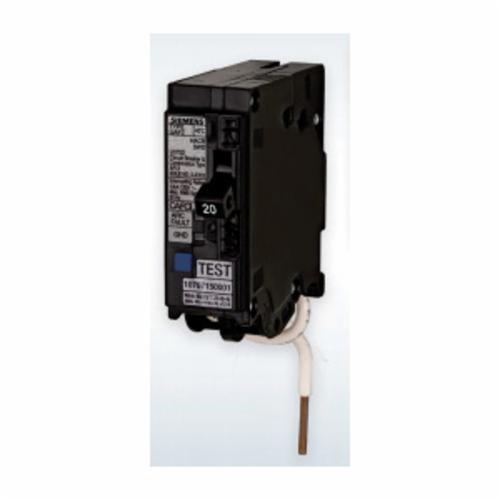

Siemens QA120AFCWG
Siemens Combination Low Voltage Arc Fault Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1 Pole Thermal Magnetic Trip, 60 Hz, QAF2 Frame, 14 - 8 AWG Copper, 12 - 8 AWG Aluminum Wire, Lug Terminal, NEMA 1, Plug-On Mount, -20 to 120 deg F, Steel
- Manufacturers: Siemens AG
- Brand Name: Siemens
- CPEPN: QA120AFCWG
- MPN: QA120AFCWG
- UPC: 804766152849
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
Siemens Arc Fault Circuit Breaker, Combination Low Voltage, Residential, 120 VAC, 20 A, 60 Hz, 10 kA Interrupt, QAF2 Frame, Thermal Magnetic Trip, 1 Pole, 14 - 8 AWG Copper, 12 - 8 AWG Aluminum Wire, Lug Terminal, NEMA 1, Plug-On Mount, -20 to 120 deg F, 2.56 Inch H x 1 Inch W x 3.05 Inch D, Steel
| Amperage Rating | : | 20 A |
| Commercial/Residential | : | Residential |
| Dimensions | : | 2.56 Inch H x 1 Inch W x 3.05 Inch D |
| Enclosure Type | : | NEMA 1 |
| Frame | : | QAF2 |
| Frequency Rating | : | 60 Hz |
| Interrupt Rating | : | 10 kA |
| Material | : | Steel |
| Mounting Type | : | Plug-On |
| Number of Poles | : | 1 |
| Temperature Rating | : | -20 to 120 deg F |
| Terminal Type | : | Lug |
| Trip Type | : | Thermal Magnetic |
| Type | : | Combination Low Voltage |
| Voltage Rating | : | 120 VAC |
| Wire Size | : | 14 - 8 AWG Copper, 12 - 8 AWG Aluminum |
- Pre-trimmed and ready to install neutral pigtails
- Oops Loop if extra wire is needed
- Over 4 Inch of gutter space
- Decreased installation time
Standard/Approvals: UL Listed, Switching Duty Rated, HACR Rated, ECCN : EAR99
