American Granby ITUV50SE

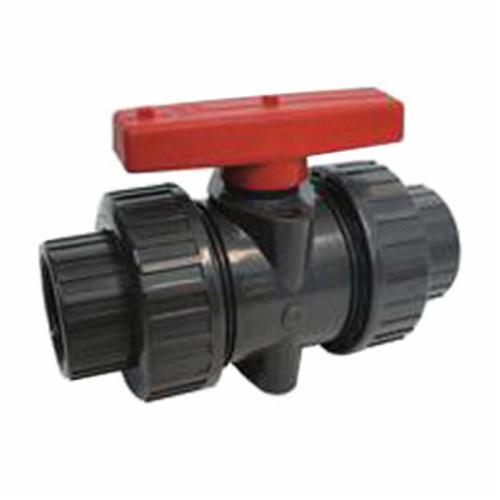

American Granby ITUV50SE ITUV True Union Ball Valve, 1/2 Inch, 150 psi, Thermoplastic Body, Full Port, Thermoplastic Body, PTFE Seat Trim, EPDM O-Ring Softgoods, -4 to 140 deg F, Gray
- Manufacturers: American Granby
- Brand Name: American Granby
- CPEPN: ITUV50SE
- MPN: ITUV50SE
- UPC: 642026002349
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Total Availability:
-
Price:
American Granby Ball Valve, True Union, Series: ITUV, 1/2 Inch Nominal,150 psi Pressure, Full Port, Thermoplastic Body, PTFE Seat Trim, EPDM O-Ring Softgoods, -4 to 140 deg F, Gray
| Body Material | : | Thermoplastic |
| Color | : | Gray |
| End Style | : | Sweat |
| Nominal Size | : | 1/2 Inch |
| Port Type | : | Full |
| Pressure Rating | : | 150 psi |
| Series | : | ITUV |
| Softgoods Material | : | EPDM O-Ring |
| Temperature Rating | : | -4 to 140 deg F |
| Trim Material | : | PTFE Seat |
| Type | : | True Union |
- Heavy duty thermoplastic gray schedule 80 PVC (type 1, grade 1)
- Full port design
- PTFE seats are resistant to chemical corrosion
- 150 psi working pressure at 73 deg water, non-shock
- Unique double union/double block design permits in-line maintenance without disconnecting pipe and with no special tools
- Both ends are blocked with bayonet-style locks which prevents the ball from being blown out, ball remains in place upon removal of valve
- External adjustment for seat wear
