Elite 24-FPL-BL-LED-3000L/4000L/5000L-DIM10-MV-35K/40K/50K-85

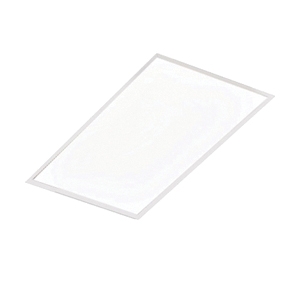

ORACLE LIGHTING 24-FPL-BL-LED-3000L/4000L/5000L-DIM10-MV-35K/40K/50K-85 Architectural Dimmable Flat Panel Backlit Fixture, LED Lamp, 120/277 V, 60000 hr Average Life, 3500/4000/5000 K Color, 85+

  • Manufacturers: Elite Lighting
  • Brand Name: Elite
  • CPEPN: 24-FPL-BL-LED-3000L/4000L/5000L-DIM10-MV
  • MPN: 24-FPL-BL-LED-3000L/4000L/5000L-DIM10-MV-35K/40K/50K-85
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Check Branch and Showroom availability
  • This item does not qualify for free shipping

ORACLE LIGHTING Flat Panel Backlit Fixture, Architectural Dimmable, Series: FPL-BL, 120/277 V, 30/39/49 W Fixture, LED Lamp, 60000 hr Average Life, 3500/4000/5000 K Color, 85+ CRI, 0 - 10 V Dimming/LED Driver Ballast, Recessed/Suspended/Surface Mount, Cold Rolled Steel Housing, 47-7/8 Inch H x 23-7/8 Inch W x 1-3/4 Inch THK

Average Life      :      60000 hr
Ballast Type      :      0 - 10 V Dimming/LED Driver
Color Rendering Index (CRI)      :      85+
Color Temperature      :      3500/4000/5000 K
Dimensions      :      47-7/8 Inch H x 23-7/8 Inch W x 1-3/4 Inch THK
Fixture Wattage      :      30/39/49 W
Housing Material      :      Cold Rolled Steel
Lamp Type      :      LED
Mounting Type      :      Recessed/Suspended/Surface
Series      :      FPL-BL
Type      :      Architectural Dimmable
Voltage Rating      :      120/277 V
  • The clean design of the FLP1-BL provides a modern alternative to traditional fluorescent troffers
  • Backlit design delivers unmatchable uniform light distribution
  • Easily adjust brightness level (multi-lumen) and color options (multi-CCT) in the field with multi-lumen and multi-CCT selectors
  • With multi-lumen and CCT selector
  • pdfSpecification Sheet https://4500cpe.stage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/ORACLE_24_FPL_BL_LED_3000L_4000L_5000L_DIM10_MV_35K_40K_50K_85_Specification_Sheet.pdf
